Text Selection in MicroSoft HoloLens
Given the development with AR&VR, we need a smart way to achieve the text selection in the MS Hololens. Therefore, we developed the new interation named head-tail to achieve the text selection in the MS Hololens Edge browser.
Image credit: Text Selection in Holones Demo
Overview
- I designed a state machines to record the states of the text selection.
- I made a P2P WebRTC between the iphone Safaria and MS Hololens Edge.
Technical Parts
The tiny device interaction
First we have to let the iphone access the files stored from the computer. This is easily achieved by the setting up a file server by python -m http.server -port, and we access the computer’s ip address + port to access the files.
P2P Real Time Communication

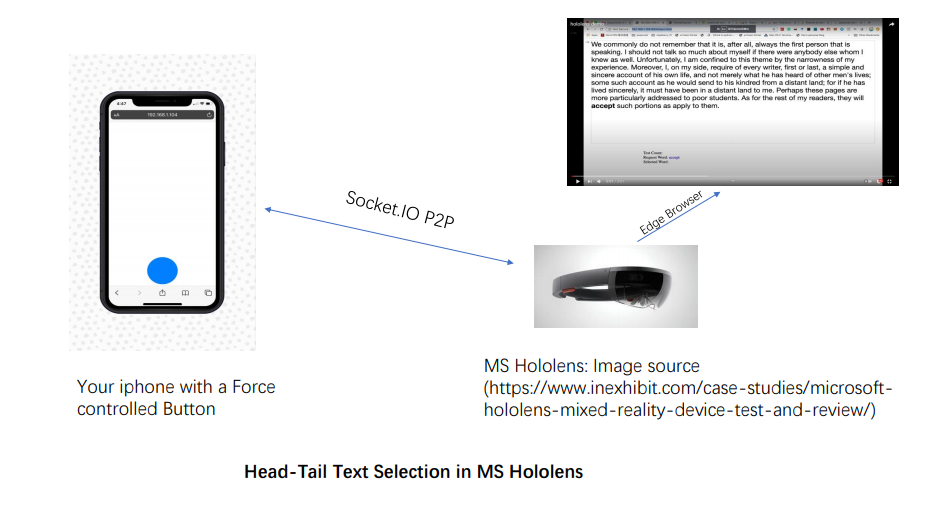

Think we have an iphone and the MicroSoft HoloLens, how to use the button on the iphone to select the text in the Hololens? There is no extra dependency on the Toolcase of hololens, I just used the websocket communication. So the basic architecture is here:
The core of the communication is Socketio.P2P which is in the Socketio which allows a communication between the peer and peer without server, the configuration is openning the port of the hololens, and create a socketio thread by filling in this port. The code on the iphone is bascially sending the signal when triggers the dom operation touchstart, touchmove, and touchend. The code in the socketio is like:
document.getElementbyId('pd').addEventListener('eventname', function(){
socket.emit('An event Sginal')
})
And on the Hololens edge browser, what it needs to do is just to receive the signal and render the text. The code corrosponds is:
socketio.on('An event Signal', function(){
//do something
})
Besides, the text has 5 states as a selection cycle: - step 1, initialzaiton. This is to ensure the devices are all online or reset. - step 2, head is selected and if confirmed then turns to the blue. - step 3, tail is selected and if confirmed then turns to the blue. - step 4, head and tail are connected. - step 5, change the state to the step 1.
So this basically how it works. Please check on this video for the detail!
